Kwik-Sift® : Sifter machine for powder sifting

The Hanningfield Kwik-Sift® is a centrifugal sifter that facilitates quick and effective security screening/ powder sifting. The effective sifting action even separates extraneous material as fine as a human hair strand!

The spoiler arm also gently de-lumps cohesive powders.

Request A Quote

Features and Benefits

Stainless Steel

316L contact parts

FDA Compliant

All seals FDA compliant (silicone, PTFE etc.)

Various Mesh Sizes

Various mesh sizes available for multi-product usage

ATEX / Ex-proof

ATEX (ex-proof) versions available

Design and Operation

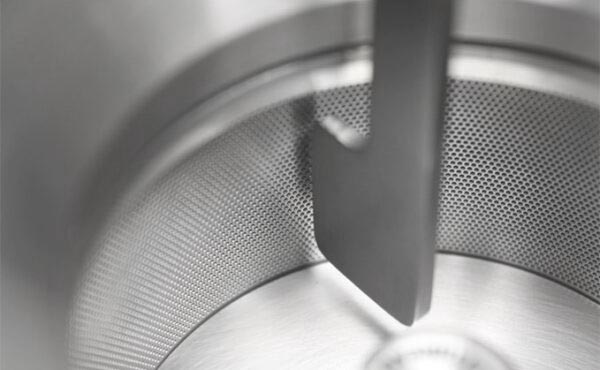

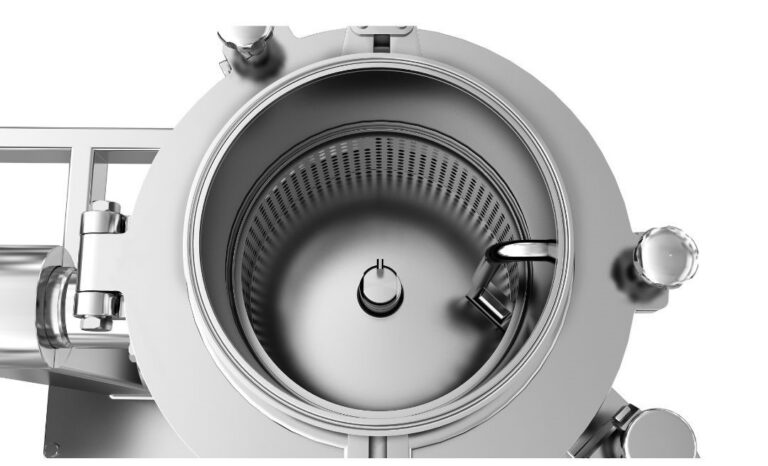

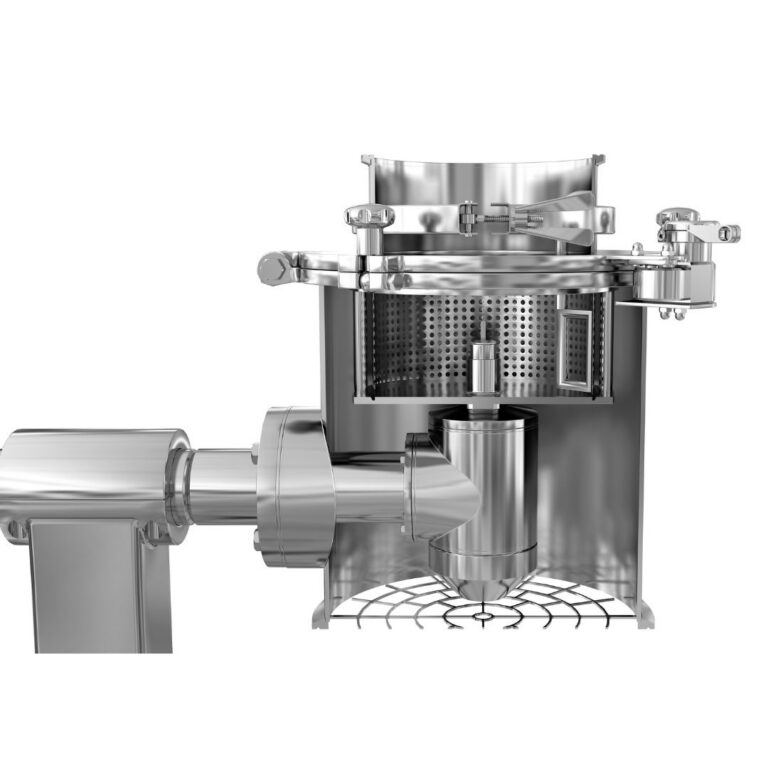

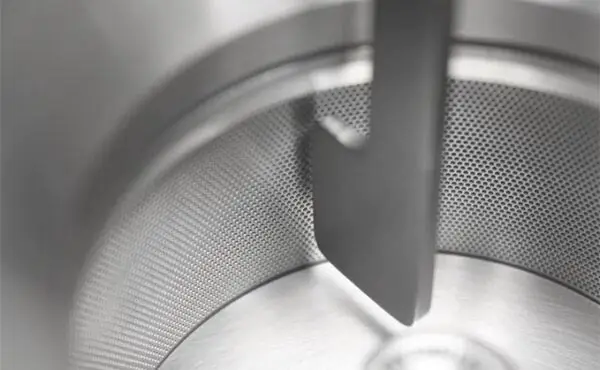

The Hanningfield Kwik-Sift® is the sifter machine for powder sifting that offers fast and effective powder screening, helping guarantee material integrity through the capture of alien objects (such as nuts, bolts, washers, cable ties). The rotating mesh drum creates a centrifugal screening action with powder passing through the mesh while retaining those objects larger than the hole aperture. For achieving different grades of separation, various drum mesh sizes are available to meet various application requirements.

The unit can incorporate a single or dual spoiler arm arrangement for performing simple de-lumping of agglomerated material.

The spoiler arm simply clamps onto the existing chute via a tri-clover.

Construction

As standard, all contact parts are manufactured from 316L stainless steel (180 grit), with FDA compliant seals, gaskets etc. Non-contact parts such as frames, motor covers and control panels are manufactured from 304 stainless steel (150 grit).

Customise Your Sifter

Various mounting solutions are available for the sifters (mobile frame, swing-arm, fixed post, hoist mounted etc.) and it can be customised with a selection of inlet and outlet configurations including hand-feed chute, valve assemblies, tri-clover connections, vacuum adaptors or any other bespoke design required for process integration.

Documentation

All equipment can be supplied with full validation documentation (FS/DS, FAT, SAT, IQ/OQ) and 3.1 mill certificates to EN10204.

Capacity Range

Up to 18,000 Kg per hour

Compliance and Certifications
