Gansons diffusion blenders are used for gentle mixing of powder ingredients and/ or formed granules. They can be seamlessly scaled up from laboratory to production scale.
Gansons offers the following types of blenders:

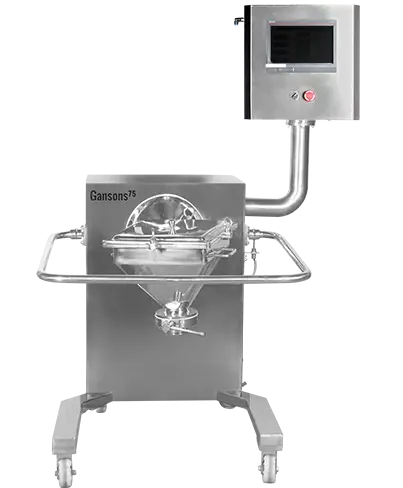

- Bin blender

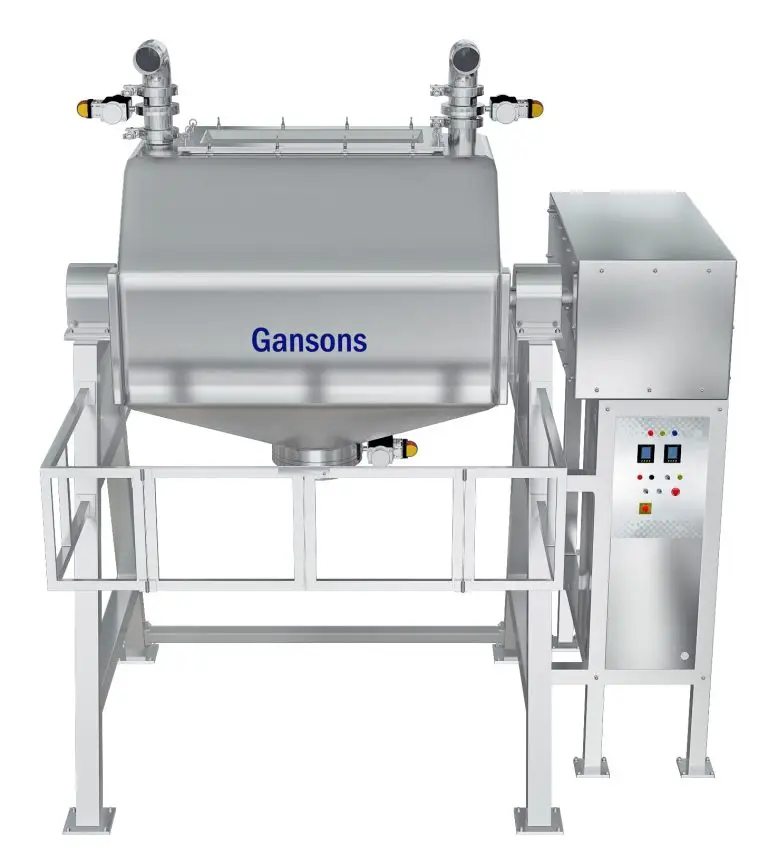

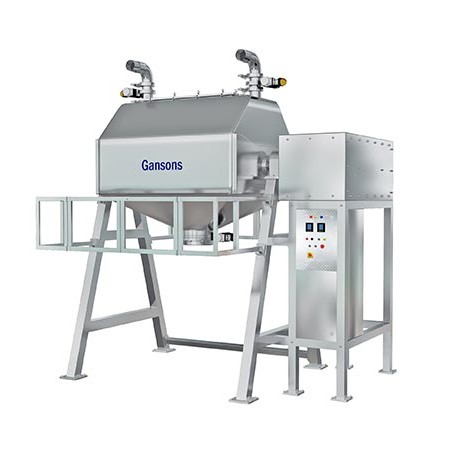

- Octagonal blender

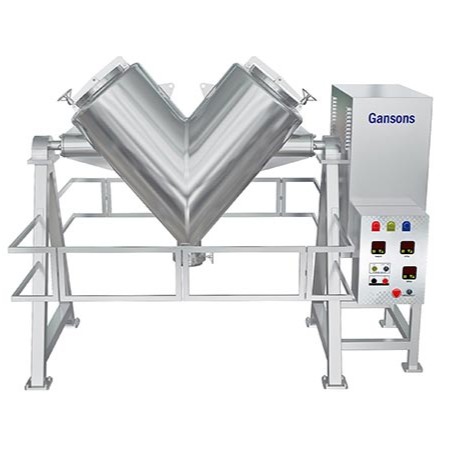

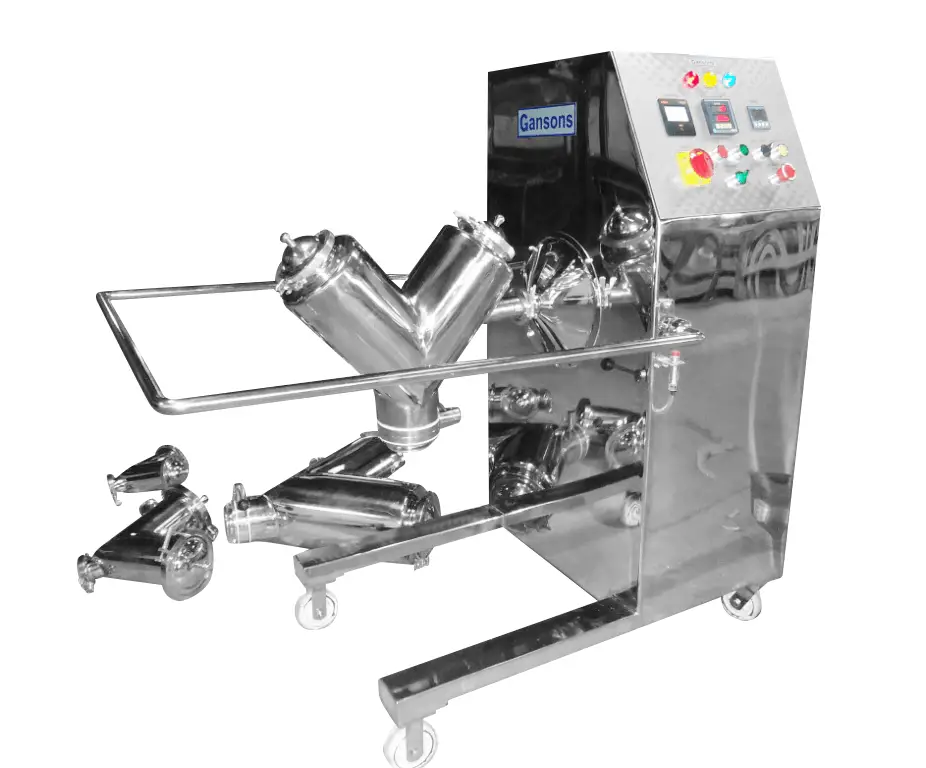

- V-type blender

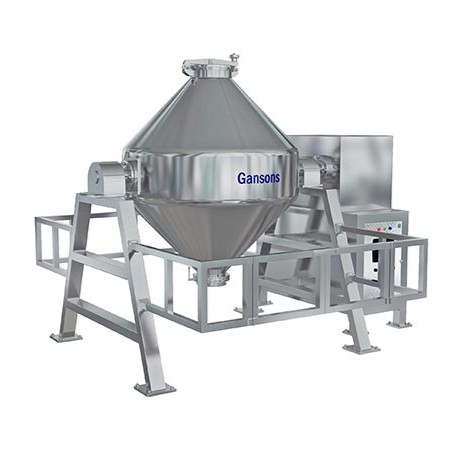

- Double cone blender
Internal Angles
The internal angles of Gansons Diffusion Blenders have been optimised to allow homogenous intermixing of material with a wide range of flow properties
Safety
• Safety Railings with interlocks
• Emergency Stop
• Limit switches and sensors for risk-free operation
Cleaning
WIP nozzles can be provided for in-situ cleaning
Automation
• Manual push button system or
• Automated PLC based control system with touch screen HMI (Human Machine Interface)
Charging and Discharging
• Can be facilitated using lifting and positioning device
• Vacuum transfer
• Gravity discharge through pneumatically operated butterfly valve or rotary valve
Capacity Range
Bin Blender
1L to 3,000L
Double Cone Blender
1L to 5,000L
V Blender
1L to 5,000L
Octagonal Blender
1L to 16,000L
